R57減速機重量：R57減速機重量18Kg，R57減速機配電機重量分別如下

R57減速機配0.12KW電機重量23.5Kg,R57減速機配0.18KW電機重量24Kg,R57減速機配0.25KW電機重量28Kg,R57減速機配0.37KW電機重量28.5Kg,R57減速機配0.55KW電機重量33Kg,R57減速機配0.75KW電機重量34Kg,R57減速機配1.1KW電機重量38Kg,R57減速機配1.5KW電機重量41Kg,R57減速機配2.2KW電機重量50Kg,R57減速機配3KW電機重量53Kg,R57減速機配4KW電機重量64Kg,R57減速機配5.5KW電機重量78Kg,R57減速機配7.5KW電機重量91Kg。

R57減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R57減速機M1安裝加0.8/1.7升，R57減速機M2安裝加1.9升，R57減速機M3安裝加1.7升，R57減速機M4安裝加2.1升，R57減速機M5安裝加1.7升，R57減速機M6安裝加1.7升。

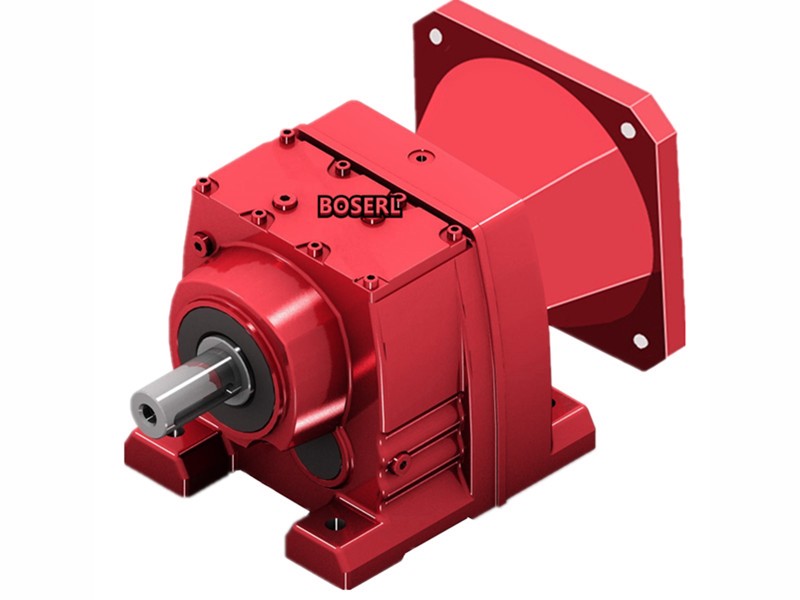

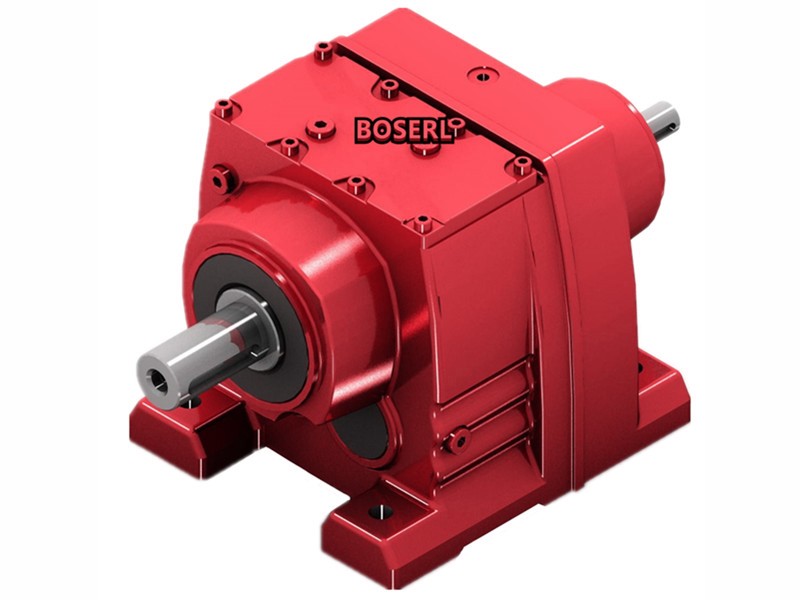

R57減速機實物圖：圖一為R57底腳安裝斜齒輪減速機，圖二RF57法蘭立式安裝斜齒輪減速機，圖三為RX57減速機不同心臥式底腳安裝，圖四為RXF57減速機不同心立式法蘭安裝。

R57減速機型號表示方法：

R57減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入配置。

R57減速機型號結構R57-B5.5KW-4P-減速比-安裝方式-接線盒位置。

R57減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R57減速機結構圖：R系列減速機

R57減速機參數：齒輪減速機

R57減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R57配0.12KW,R57配0.25KW,R57配0.37KW,R57配0.55KW,R57配0.75KW,R57配1.1KW,R57配1.5KW,R57配2.2KW,R57配3KW,R57配4KW,R57配5.5KW,R57配7.5KW。

R57減速機減速比4.39比,5.05比,5.82.比,6.41比,7.53比,7.97比,9.06比,9.35比,10.79比,11.18比,13.95比,14.77比,16.79比,18.60比,21.93比,24.99比,26.31比,26.97比,30.18比,35.07比,37.3比,43.3比,48.32比,53.22比,57.29比,64.85比,69.23比,80.55比,89.71比,98.99比,106.58比,120.63比,128.77比,147.92比,172.17比,186.89比。

R57減速機輸出轉速7.5轉,8.1轉,9.5轉,11轉,12轉,13轉,14轉,16轉,17轉,20轉,22轉,24轉,26轉,29轉,32轉,32轉,38轉,40轉,46轉,52轉,53轉,56轉,64轉,75轉,83轉,95轉,100轉,118轉,130轉,150轉,155轉,176轉,186轉,218轉,241轉,277轉,319轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R57減速機負載扭矩280N.m,305N.m,320N.m,335N.m,350N.m,355N.m,370N.m,375N.m,390N.m,405N.m,430N.m,435N.m,450N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

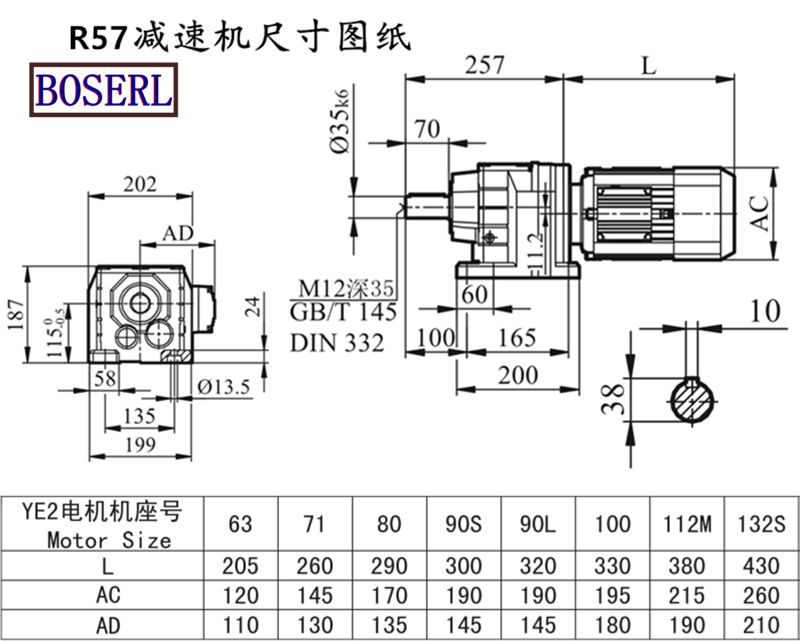

R57減速機尺寸圖紙：高187*寬199*長257（帶輸出軸）同軸減速機

R57減速機型號:

R57AQA80,R57AQA100,R57AQA115,R57AQA140,R57AQA160,R57AQA190,R57AQH80,R57AQH100,R57AQH115,R57AQH140,R57AQH160,R57AQH190,JRTR57-Y0.12KW,JRTR57-Y0.18KW,JRTR57-Y0.25KW,JRTR57-Y0.37KW,JRTR57-Y0.55KW,JRTR57-Y0.75KW,JRTR57-Y1.1KW,JRTR57-Y1.5KW,JRTR57-Y100M4,JRTR57-Y112M4,JRTR57-Y132M4,JRTR57-Y2.2KW,JRTR57-Y3KW,JRTR57-Y4KW,JRTR57-Y5.5KW,JRTR57-Y63M4,JRTR57-Y7.5KW,JRTR57-Y71M4,JRTR57-Y80M4,JRTR57-Y90M4,JRTR57-YEJ100M4,JRTR57-YEJ112M4,JRTR57-YEJ132M4,JRTR57-YEJ63M4,JRTR57-YEJ71M4,JRTR57-YEJ80M4,JRTR57-YEJ90M4,JRTR57-YS100M4,JRTR57-YS112M4,JRTR57-YS132M4,JRTR57-YS63M4,JRTR57-YS71M4,JRTR57-YS80M4,JRTR57-YS90M4,JRTR57-YVP100M4,JRTR57-YVP112M4,JRTR57-YVP132M4,JRTR57-YVP63M4,JRTR57-YVP71M4,JRTR57-YVP80M4,JRTR57-YVP90M4,JRTR57-YVPEJ100M4,JRTR57-YVPEJ112M4,JRTR57-YVPEJ132M4,JRTR57-YVPEJ63M4,JRTR57-YVPEJ71M4,JRTR57-YVPEJ80M4,JRTR57-YVPEJ90M4,EWR57-Y0.12KW,EWR57-Y0.18KW,EWR57-Y0.25KW,EWR57-Y0.37KW,EWR57-Y0.55KW,EWR57-Y0.75KW,EWR57-Y1.1KW,EWR57-Y1.5KW,EWR57-Y100M4,EWR57-Y112M4,EWR57-Y132M4,EWR57-Y2.2KW,EWR57-Y3KW,EWR57-Y4KW,EWR57-Y5.5KW,EWR57-Y63M4,EWR57-Y7.5KW,EWR57-Y71M4,EWR57-Y80M4,EWR57-Y90M4,EWR57-YEJ100M4,EWR57-YEJ112M4,EWR57-YEJ132M4,EWR57-YEJ63M4,EWR57-YEJ71M4,EWR57-YEJ80M4,EWR57-YEJ90M4,EWR57-YS100M4,EWR57-YS112M4,EWR57-YS132M4,EWR57-YS63M4,EWR57-YS71M4,EWR57-YS80M4,EWR57-YS90M4,EWR57-YVP100M4,EWR57-YVP112M4,EWR57-YVP132M4,EWR57-YVP63M4,EWR57-YVP71M4,EWR57-YVP80M4,EWR57-YVP90M4,EWR57-YVPEJ100M4,EWR57-YVPEJ112M4,EWR57-YVPEJ132M4,EWR57-YVPEJ63M4,EWR57-YVPEJ71M4,EWR57-YVPEJ80M4,EWR57-YVPEJ90M4,SLR57-Y0.12KW,SLR57-Y0.18KW,SLR57-Y0.25KW,SLR57-Y0.37KW,SLR57-Y0.55KW,SLR57-Y0.75KW,SLR57-Y1.1KW,SLR57-Y1.5KW,SLR57-Y100M4,SLR57-Y112M4,SLR57-Y132M4,SLR57-Y2.2KW,SLR57-Y3KW,SLR57-Y4KW,SLR57-Y5.5KW,SLR57-Y63M4,SLR57-Y7.5KW,SLR57-Y71M4,SLR57-Y80M4,SLR57-Y90M4,SLR57-YEJ100M4,SLR57-YEJ112M4,SLR57-YEJ132M4,SLR57-YEJ63M4,SLR57-YEJ71M4,SLR57-YEJ80M4,SLR57-YEJ90M4,SLR57-YS100M4,SLR57-YS112M4,SLR57-YS132M4,SLR57-YS63M4,SLR57-YS71M4,SLR57-YS80M4,SLR57-YS90M4,SLR57-YVP100M4,SLR57-YVP112M4,SLR57-YVP132M4,SLR57-YVP63M4,SLR57-YVP71M4,SLR57-YVP80M4,SLR57-YVP90M4,SLR57-YVPEJ100M4,SLR57-YVPEJ112M4,SLR57-YVPEJ132M4,SLR57-YVPEJ63M4,SLR57-YVPEJ71M4,SLR57-YVPEJ80M4,SLR57-YVPEJ90M4,DSZR57-Y0.12KW,DSZR57-Y0.18KW,DSZR57-Y0.25KW,DSZR57-Y0.37KW,DSZR57-Y0.55KW,DSZR57-Y0.75KW,DSZR57-Y1.1KW,DSZR57-Y1.5KW,DSZR57-Y100M4,DSZR57-Y112M4,DSZR57-Y132M4,DSZR57-Y2.2KW,DSZR57-Y3KW,DSZR57-Y4KW,DSZR57-Y5.5KW,DSZR57-Y63M4,DSZR57-Y7.5KW,DSZR57-Y71M4,DSZR57-Y80M4,DSZR57-Y90M4,DSZR57-YEJ100M4,DSZR57-YEJ112M4,DSZR57-YEJ132M4,DSZR57-YEJ63M4,DSZR57-YEJ71M4,DSZR57-YEJ80M4,DSZR57-YEJ90M4,DSZR57-YS100M4,DSZR57-YS112M4,DSZR57-YS132M4,DSZR57-YS63M4,DSZR57-YS71M4,DSZR57-YS80M4,DSZR57-YS90M4,DSZR57-YVP100M4,DSZR57-YVP112M4,DSZR57-YVP132M4,DSZR57-YVP63M4,DSZR57-YVP71M4,DSZR57-YVP80M4,DSZR57-YVP90M4,DSZR57-YVPEJ100M4,DSZR57-YVPEJ112M4,DSZR57-YVPEJ132M4,DSZR57-YVPEJ63M4,DSZR57-YVPEJ71M4,DSZR57-YVPEJ80M4,DSZR57-YVPEJ90M4,BR57-Y0.12KW,BR57-Y0.18KW,BR57-Y0.25KW,BR57-Y0.37KW,BR57-Y0.55KW,BR57-Y0.75KW,BR57-Y1.1KW,BR57-Y1.5KW,BR57-Y100M4,BR57-Y112M4,BR57-Y132M4,BR57-Y2.2KW,BR57-Y3KW,BR57-Y4KW,BR57-Y5.5KW,BR57-Y63M4,BR57-Y7.5KW,BR57-Y71M4,BR57-Y80M4,BR57-Y90M4,BR57-YEJ100M4,BR57-YEJ112M4,BR57-YEJ132M4,BR57-YEJ63M4,BR57-YEJ71M4,BR57-YEJ80M4,BR57-YEJ90M4,BR57-YS100M4,BR57-YS112M4,BR57-YS132M4,BR57-YS63M4,BR57-YS71M4,BR57-YS80M4,BR57-YS90M4,BR57-YVP100M4,BR57-YVP112M4,BR57-YVP132M4,BR57-YVP63M4,BR57-YVP71M4,BR57-YVP80M4,BR57-YVP90M4,BR57-YVPEJ100M4,BR57-YVPEJ112M4,BR57-YVPEJ132M4,BR57-YVPEJ63M4,BR57-YVPEJ71M4,BR57-YVPEJ80M4,BR57-YVPEJ90M4,GR57-Y0.12KW,GR57-Y0.18KW,GR57-Y0.25KW,GR57-Y0.37KW,GR57-Y0.55KW,GR57-Y0.75KW,GR57-Y1.1KW,GR57-Y1.5KW,GR57-Y100M4,GR57-Y112M4,GR57-Y132M4,GR57-Y2.2KW,GR57-Y3KW,GR57-Y4KW,GR57-Y5.5KW,GR57-Y63M4,GR57-Y7.5KW,GR57-Y71M4,GR57-Y80M4,GR57-Y90M4,GR57-YEJ100M4,GR57-YEJ112M4,GR57-YEJ132M4,GR57-YEJ63M4,GR57-YEJ71M4,GR57-YEJ80M4,GR57-YEJ90M4,GR57-YS100M4,GR57-YS112M4,GR57-YS132M4,GR57-YS63M4,GR57-YS71M4,GR57-YS80M4,GR57-YS90M4,GR57-YVP100M4,GR57-YVP112M4,GR57-YVP132M4,GR57-YVP63M4,GR57-YVP71M4,GR57-YVP80M4,GR57-YVP90M4,GR57-YVPEJ100M4,GR57-YVPEJ112M4,GR57-YVPEJ132M4,GR57-YVPEJ63M4,GR57-YVPEJ71M4,GR57-YVPEJ80M4,GR57-YVPEJ90M4,RC57-Y0.12KW,RC57-Y0.18KW,RC57-Y0.25KW,RC57-Y0.37KW,RC57-Y0.55KW,RC57-Y0.75KW,RC57-Y1.1KW,RC57-Y1.5KW,RC57-Y100M4,RC57-Y112M4,RC57-Y132M4,RC57-Y2.2KW,RC57-Y3KW,RC57-Y4KW,RC57-Y5.5KW,RC57-Y63M4,RC57-Y7.5KW,RC57-Y71M4,RC57-Y80M4,RC57-Y90M4,RC57-YEJ100M4,RC57-YEJ112M4,RC57-YEJ132M4,RC57-YEJ63M4,RC57-YEJ71M4,RC57-YEJ80M4,RC57-YEJ90M4,RC57-YS100M4,RC57-YS112M4,RC57-YS132M4,RC57-YS63M4,RC57-YS71M4,RC57-YS80M4,RC57-YS90M4,RC57-YVP100M4,RC57-YVP112M4,RC57-YVP132M4,RC57-YVP63M4,RC57-YVP71M4,RC57-YVP80M4,RC57-YVP90M4,RC57-YVPEJ100M4,RC57-YVPEJ112M4,RC57-YVPEJ132M4,RC57-YVPEJ63M4,RC57-YVPEJ71M4,RC57-YVPEJ80M4,RC57-YVPEJ90M4,MTD57-Y0.12KW,MTD57-Y0.18KW,MTD57-Y0.25KW,MTD57-Y0.37KW,MTD57-Y0.55KW,MTD57-Y0.75KW,MTD57-Y1.1KW,MTD57-Y1.5KW,MTD57-Y100M4,MTD57-Y112M4,MTD57-Y132M4,MTD57-Y2.2KW,MTD57-Y3KW,MTD57-Y4KW,MTD57-Y5.5KW,MTD57-Y63M4,MTD57-Y7.5KW,MTD57-Y71M4,MTD57-Y80M4,MTD57-Y90M4,MTD57-YEJ100M4,MTD57-YEJ112M4,MTD57-YEJ132M4,MTD57-YEJ63M4,MTD57-YEJ71M4,MTD57-YEJ80M4,MTD57-YEJ90M4,MTD57-YS100M4,MTD57-YS112M4,MTD57-YS132M4,MTD57-YS63M4,MTD57-YS71M4,MTD57-YS80M4,MTD57-YS90M4,MTD57-YVP100M4,MTD57-YVP112M4,MTD57-YVP132M4,MTD57-YVP63M4,MTD57-YVP71M4,MTD57-YVP80M4,MTD57-YVP90M4,MTD57-YVPEJ100M4,MTD57-YVPEJ112M4,MTD57-YVPEJ132M4,MTD57-YVPEJ63M4,MTD57-YVPEJ71M4,MTD57-YVPEJ80M4,MTD57-YVPEJ90M4,WXR57-WSS0.12KW,WXR57-WSS0.18KW,WXR57-WSS0.25KW,WXR57-WSS0.37KW,WXR57-WSS0.55KW,WXR57-WSS0.75KW,WXR57-WSS1.1KW,WXR57-WSS1.5KW,WXR57-WSS100M4,WXR57-WSS112M4,WXR57-WSS132M4,WXR57-WSS2.2KW,WXR57-WSS3KW,WXR57-WSS4KW,WXR57-WSS5.5KW,WXR57-WSS63M4,WXR57-WSS7.5KW,WXR57-WSS71M4,WXR57-WSS80M4,WXR57-WSS90M4,WXR57-WSSB100M4,WXR57-WSSB112M4,WXR57-WSSB132M4,WXR57-WSSB63M4,WXR57-WSSB71M4,WXR57-WSSB80M4,WXR57-WSSB90M4,WXR57-WSSVP100M4,WXR57-WSSVP112M4,WXR57-WSSVP132M4,WXR57-WSSVP63M4,WXR57-WSSVP71M4,WXR57-WSSVP80M4,WXR57-WSSVP90M4,WXR57-WSSVPB100M4,WXR57-WSSVPB112M4,WXR57-WSSVPB132M4,WXR57-WSSVPB63M4,WXR57-WSSVPB71M4,WXR57-WSSVPB80M4,WXR57-WSSVPB90M4。
