SF77減速機重量：SF77減速機重量52公斤，SF77減速機帶電機重量分別如下

SF77減速機帶0.55KW電機重量67公斤，SF77減速機帶0.75KW電機重量68公斤，SF77減速機帶1.1KW電機重量72公斤，SF77減速機帶1.5KW電機重量75公斤，SF77減速機帶2.2KW電機重量84公斤，SF77減速機帶3KW電機重量87公斤，SF77減速機帶4KW電機重量98公斤，SF77減速機帶5.5KW電機重量112公斤，SF77減速機帶7.5KW電機重量125公斤。自鎖減速機

SF77減速機加油量：可加合成油

SF77減速機M2方式安裝加4.1升，SF77減速機M1方式安裝加1.9升，SF77減速機M3方式安裝加3.9、5.8升，SF77減速機M4方式安裝加6.5升，SF77減速機M5方式安裝加4.9升，SF77減速機M6方式安裝加4.9升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

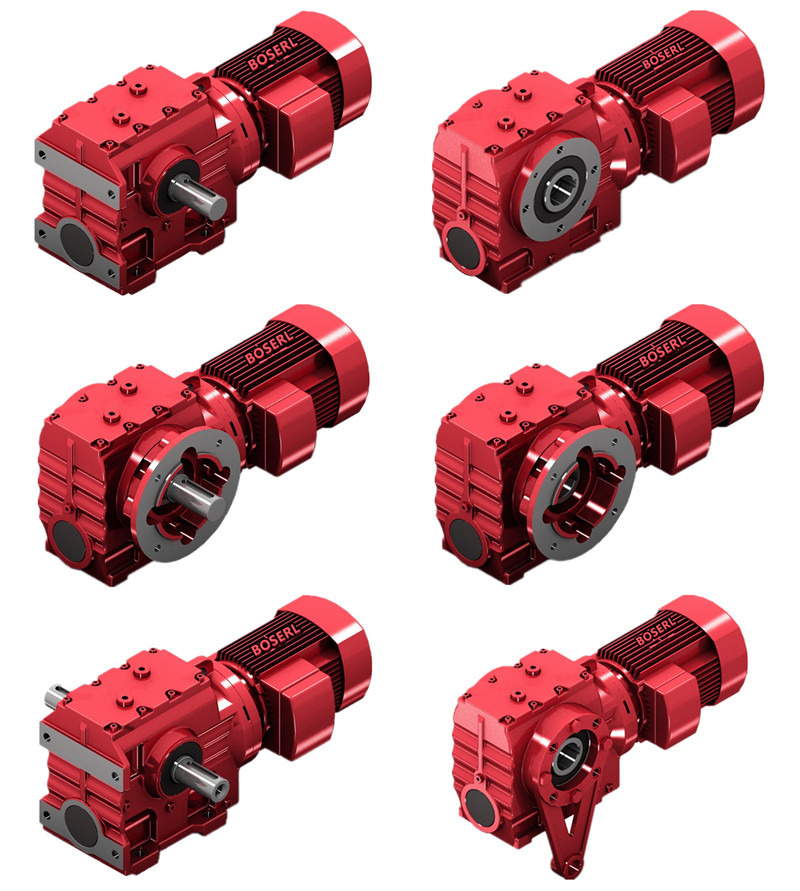

SF77減速機實物圖：圖一為SF77具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖二S77帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SA77臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF77立式通孔斜齒輪減速機。

SF77減速機型號表示方法：

SF77減速機型號結構SF77-B5.5KW-4P-減速比-安裝方式-接線盒位置。

SF77減速機性能參數表結構說明：T扭力臂，E編碼器，K代表服務系數，Frame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，SF77、S77、SA77、SAF77減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SF77減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供

SF77減速機參數：

SF77減速機輸出轉數5.50轉，6.2轉，6.5轉，7.4轉，8.7轉，9.4轉，11轉，13轉，14轉，16轉，19轉，20轉，21轉，22轉，25轉，26轉，28轉，32轉，34轉，39轉，43轉，49轉，56轉，61轉，63轉，67轉，74轉，76轉，80轉，92轉，102轉，116轉，131轉，148轉，174轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SF77減速機電機可帶三相、直流、變頻、剎車、防爆、伺服、交流、單相電機SF77帶0.55KW，SF77帶0.75KW，SF77帶1.1KW，SF77帶1.5KW，SF77帶2.2KW，SF77帶3KW，SF77帶4KW，SF77帶5.5KW，SF77帶7.5KW。

SF77減速機輸出扭矩680N.m，705N.m，710N.m，720N.m，725N.m，930N.m，980N.m，990N.m，1020N.m，1040N.m，1050N.m，1070N.m，1090N.m，1100N.m，1140N.m，1170N.m，1200N.m，1210N.m，1240N.m，1260N.m，1270N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SF77減速機減速比256.47比，225.26比，214比，189.09比，161.6比，148.15比，130比，123.3比，107.83比，97.14比，85.22比，75.2比，75.09比，71.33比，66.67比，63.03比，56.92比，53.87比，49.38比，43.33比，41.07比，35.94比，32.38比，28.41比，25.07比，22.89比，22.22比，20.99比，18.97比，18.42比，17.45比，15.28比，13.76比，12.07比，10.65比，9.44比，8.06比。

SF77減速機外形尺寸：輸出軸直徑Φ45（可定做）+鍵4.5，高301*寬351（帶輸出軸）*長287

SF77減速機型號：SF77AQA80,SF77AQA100,SF77AQA115,SF77AQA140,SF77AQA160,SF77AQA190,SF77AQH80,SF77AQH100,SF77AQH115,SF77AQH140,SF77AQH160,SF77AQH190,JRTSF77-Y0.25KW,JRTSF77-Y0.37KW,JRTSF77-Y0.55KW,JRTSF77-Y0.75KW,JRTSF77-Y1.1KW,JRTSF77-Y1.5KW,JRTSF77-Y100M4,JRTSF77-Y112M4,JRTSF77-Y132M4,JRTSF77-Y2.2KW,JRTSF77-Y3KW,JRTSF77-Y4KW,JRTSF77-Y5.5KW,JRTSF77-Y7.5KW,JRTSF77-Y71M4,JRTSF77-Y80M4,JRTSF77-Y90M4,JRTSF77-YEJ100M4,JRTSF77-YEJ112M4,JRTSF77-YEJ132M4,JRTSF77-YEJ71M4,JRTSF77-YEJ80M4,JRTSF77-YEJ90M4,JRTSF77-YS100M4,JRTSF77-YS112M4,JRTSF77-YS132M4,JRTSF77-YS71M4,JRTSF77-YS80M4,JRTSF77-YS90M4,JRTSF77-YVP100M4,JRTSF77-YVP112M4,JRTSF77-YVP132M4,JRTSF77-YVP71M4,JRTSF77-YVP80M4,JRTSF77-YVP90M4,JRTSF77-YVPEJ100M4,JRTSF77-YVPEJ112M4,JRTSF77-YVPEJ132M4,JRTSF77-YVPEJ71M4,JRTSF77-YVPEJ80M4,JRTSF77-YVPEJ90M4,EWSF77-Y0.25KW,EWSF77-Y0.37KW,EWSF77-Y0.55KW,EWSF77-Y0.75KW,EWSF77-Y1.1KW,EWSF77-Y1.5KW,EWSF77-Y100M4,EWSF77-Y112M4,EWSF77-Y132M4,EWSF77-Y2.2KW,EWSF77-Y3KW,EWSF77-Y4KW,EWSF77-Y5.5KW,EWSF77-Y7.5KW,EWSF77-Y71M4,EWSF77-Y80M4,EWSF77-Y90M4,EWSF77-YEJ100M4,EWSF77-YEJ112M4,EWSF77-YEJ132M4,EWSF77-YEJ71M4,EWSF77-YEJ80M4,EWSF77-YEJ90M4,EWSF77-YS100M4,EWSF77-YS112M4,EWSF77-YS132M4,EWSF77-YS71M4,EWSF77-YS80M4,EWSF77-YS90M4,EWSF77-YVP100M4,EWSF77-YVP112M4,EWSF77-YVP132M4,EWSF77-YVP71M4,EWSF77-YVP80M4,EWSF77-YVP90M4,EWSF77-YVPEJ100M4,EWSF77-YVPEJ112M4,EWSF77-YVPEJ132M4,EWSF77-YVPEJ71M4,EWSF77-YVPEJ80M4,EWSF77-YVPEJ90M4,SLSF77-Y0.25KW,SLSF77-Y0.37KW,SLSF77-Y0.55KW,SLSF77-Y0.75KW,SLSF77-Y1.1KW,SLSF77-Y1.5KW,SLSF77-Y100M4,SLSF77-Y112M4,SLSF77-Y132M4,SLSF77-Y2.2KW,SLSF77-Y3KW,SLSF77-Y4KW,SLSF77-Y5.5KW,SLSF77-Y7.5KW,SLSF77-Y71M4,SLSF77-Y80M4,SLSF77-Y90M4,SLSF77-YEJ100M4,SLSF77-YEJ112M4,SLSF77-YEJ132M4,SLSF77-YEJ71M4,SLSF77-YEJ80M4,SLSF77-YEJ90M4,SLSF77-YS100M4,SLSF77-YS112M4,SLSF77-YS132M4,SLSF77-YS71M4,SLSF77-YS80M4,SLSF77-YS90M4,SLSF77-YVP100M4,SLSF77-YVP112M4,SLSF77-YVP132M4,SLSF77-YVP71M4,SLSF77-YVP80M4,SLSF77-YVP90M4,SLSF77-YVPEJ100M4,SLSF77-YVPEJ112M4,SLSF77-YVPEJ132M4,SLSF77-YVPEJ71M4,SLSF77-YVPEJ80M4,SLSF77-YVPEJ90M4,DSZSF77-Y0.25KW,DSZSF77-Y0.37KW,DSZSF77-Y0.55KW,DSZSF77-Y0.75KW,DSZSF77-Y1.1KW,DSZSF77-Y1.5KW,DSZSF77-Y100M4,DSZSF77-Y112M4,DSZSF77-Y132M4,DSZSF77-Y2.2KW,DSZSF77-Y3KW,DSZSF77-Y4KW,DSZSF77-Y5.5KW,DSZSF77-Y7.5KW,DSZSF77-Y71M4,DSZSF77-Y80M4,DSZSF77-Y90M4,DSZSF77-YEJ100M4,DSZSF77-YEJ112M4,DSZSF77-YEJ132M4,DSZSF77-YEJ71M4,DSZSF77-YEJ80M4,DSZSF77-YEJ90M4,DSZSF77-YS100M4,DSZSF77-YS112M4,DSZSF77-YS132M4,DSZSF77-YS71M4,DSZSF77-YS80M4,DSZSF77-YS90M4,DSZSF77-YVP100M4,DSZSF77-YVP112M4,DSZSF77-YVP132M4,DSZSF77-YVP71M4,DSZSF77-YVP80M4,DSZSF77-YVP90M4,DSZSF77-YVPEJ100M4,DSZSF77-YVPEJ112M4,DSZSF77-YVPEJ132M4,DSZSF77-YVPEJ71M4,DSZSF77-YVPEJ80M4,DSZSF77-YVPEJ90M4,BSF77-Y0.25KW,BSF77-Y0.37KW,BSF77-Y0.55KW,BSF77-Y0.75KW,BSF77-Y1.1KW,BSF77-Y1.5KW,BSF77-Y100M4,BSF77-Y112M4,BSF77-Y132M4,BSF77-Y2.2KW,BSF77-Y3KW,BSF77-Y4KW,BSF77-Y5.5KW,BSF77-Y7.5KW,BSF77-Y71M4,BSF77-Y80M4,BSF77-Y90M4,BSF77-YEJ100M4,BSF77-YEJ112M4,BSF77-YEJ132M4,BSF77-YEJ71M4,BSF77-YEJ80M4,BSF77-YEJ90M4,BSF77-YS100M4,BSF77-YS112M4,BSF77-YS132M4,BSF77-YS71M4,BSF77-YS80M4,BSF77-YS90M4,BSF77-YVP100M4,BSF77-YVP112M4,BSF77-YVP132M4,BSF77-YVP71M4,BSF77-YVP80M4,BSF77-YVP90M4,BSF77-YVPEJ100M4,BSF77-YVPEJ112M4,BSF77-YVPEJ132M4,BSF77-YVPEJ71M4,BSF77-YVPEJ80M4,BSF77-YVPEJ90M4,GSF77-Y0.25KW,GSF77-Y0.37KW,GSF77-Y0.55KW,GSF77-Y0.75KW,GSF77-Y1.1KW,GSF77-Y1.5KW,GSF77-Y100M4,GSF77-Y112M4,GSF77-Y132M4,GSF77-Y2.2KW,GSF77-Y3KW,GSF77-Y4KW,GSF77-Y5.5KW,GSF77-Y7.5KW,GSF77-Y71M4,GSF77-Y80M4,GSF77-Y90M4,GSF77-YEJ100M4,GSF77-YEJ112M4,GSF77-YEJ132M4,GSF77-YEJ71M4,GSF77-YEJ80M4,GSF77-YEJ90M4,GSF77-YS100M4,GSF77-YS112M4,GSF77-YS132M4,GSF77-YS71M4,GSF77-YS80M4,GSF77-YS90M4,GSF77-YVP100M4,GSF77-YVP112M4,GSF77-YVP132M4,GSF77-YVP71M4,GSF77-YVP80M4,GSF77-YVP90M4,GSF77-YVPEJ100M4,GSF77-YVPEJ112M4,GSF77-YVPEJ132M4,GSF77-YVPEJ71M4,GSF77-YVPEJ80M4,GSF77-YVPEJ90M4,SCF77-Y0.25KW,SCF77-Y0.37KW,SCF77-Y0.55KW,SCF77-Y0.75KW,SCF77-Y1.1KW,SCF77-Y1.5KW,SCF77-Y100M4,SCF77-Y112M4,SCF77-Y132M4,SCF77-Y2.2KW,SCF77-Y3KW,SCF77-Y4KW,SCF77-Y5.5KW,SCF77-Y7.5KW,SCF77-Y71M4,SCF77-Y80M4,SCF77-Y90M4,SCF77-YEJ100M4,SCF77-YEJ112M4,SCF77-YEJ132M4,SCF77-YEJ71M4,SCF77-YEJ80M4,SCF77-YEJ90M4,SCF77-YS100M4,SCF77-YS112M4,SCF77-YS132M4,SCF77-YS71M4,SCF77-YS80M4,SCF77-YS90M4,SCF77-YVP100M4,SCF77-YVP112M4,SCF77-YVP132M4,SCF77-YVP71M4,SCF77-YVP80M4,SCF77-YVP90M4,SCF77-YVPEJ100M4,SCF77-YVPEJ112M4,SCF77-YVPEJ132M4,SCF77-YVPEJ71M4,SCF77-YVPEJ80M4,SCF77-YVPEJ90M4,MTNF77-Y0.25KW,MTNF77-Y0.37KW,MTNF77-Y0.55KW,MTNF77-Y0.75KW,MTNF77-Y1.1KW,MTNF77-Y1.5KW,MTNF77-Y100M4,MTNF77-Y112M4,MTNF77-Y132M4,MTNF77-Y2.2KW,MTNF77-Y3KW,MTNF77-Y4KW,MTNF77-Y5.5KW,MTNF77-Y7.5KW,MTNF77-Y71M4,MTNF77-Y80M4,MTNF77-Y90M4,MTNF77-YEJ100M4,MTNF77-YEJ112M4,MTNF77-YEJ132M4,MTNF77-YEJ71M4,MTNF77-YEJ80M4,MTNF77-YEJ90M4,MTNF77-YS100M4,MTNF77-YS112M4,MTNF77-YS132M4,MTNF77-YS71M4,MTNF77-YS80M4,MTNF77-YS90M4,MTNF77-YVP100M4,MTNF77-YVP112M4,MTNF77-YVP132M4,MTNF77-YVP71M4,MTNF77-YVP80M4,MTNF77-YVP90M4,MTNF77-YVPEJ100M4,MTNF77-YVPEJ112M4,MTNF77-YVPEJ132M4,MTNF77-YVPEJ71M4,MTNF77-YVPEJ80M4,MTNF77-YVPEJ90M4,WXSF77-WSS0.25KW,WXSF77-WSS0.37KW,WXSF77-WSS0.55KW,WXSF77-WSS0.75KW,WXSF77-WSS1.1KW,WXSF77-WSS1.5KW,WXSF77-WSS100M4,WXSF77-WSS112M4,WXSF77-WSS132M4,WXSF77-WSS2.2KW,WXSF77-WSS3KW,WXSF77-WSS4KW,WXSF77-WSS5.5KW,WXSF77-WSS7.5KW,WXSF77-WSS71M4,WXSF77-WSS80M4,WXSF77-WSS90M4,WXSF77-WSSB100M4,WXSF77-WSSB112M4,WXSF77-WSSB132M4,WXSF77-WSSB71M4,WXSF77-WSSB80M4,WXSF77-WSSB90M4,WXSF77-WSSVP100M4,WXSF77-WSSVP112M4,WXSF77-WSSVP132M4,WXSF77-WSSVP71M4,WXSF77-WSSVP80M4,WXSF77-WSSVP90M4,WXSF77-WSSVPB100M4,WXSF77-WSSVPB112M4,WXSF77-WSSVPB132M4,WXSF77-WSSVPB71M4,WXSF77-WSSVPB80M4,WXSF77-WSSVPB90M4。伺服電機蝸輪蝸桿減速機
