KH167減速機重量：KH167減速機重量1014公斤，KH167減速機與電機重量分別如下

KH167減速機與11KW電機重量1129公斤，KH167減速機與15KW電機重量1149公斤，KH167減速機與18.5KW電機重量1186公斤，KH167減速機與22KW電機重量1199公斤，KH167減速機與30KW電機重量1267公斤，KH167減速機與37KW電機重量1314公斤，KH167減速機與45KW電機重量1349公斤，KH167減速機與55KW電機重量1434公斤，KH167減速機與75KW電機重量1574公斤，KH167減速機與90KW電機重量1684公斤，KH167減速機與110KW電機重量1934公斤，KH167減速機與132KW電機重量2064公斤，KH167減速機與160KW電機重量2174公斤，KH167減速機與200KW電機重量2254公斤。直角減速機

KH167減速機加油量：可加齒輪油

KH167減速機M3安裝方式加105L，KH167減速機M2安裝方式加95L，KH167減速機M1安裝方式加33L，KH167減速機M4安裝方式加123L，KH167減速機M5安裝方式加85L，KH167減速機M6安裝方式加84L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

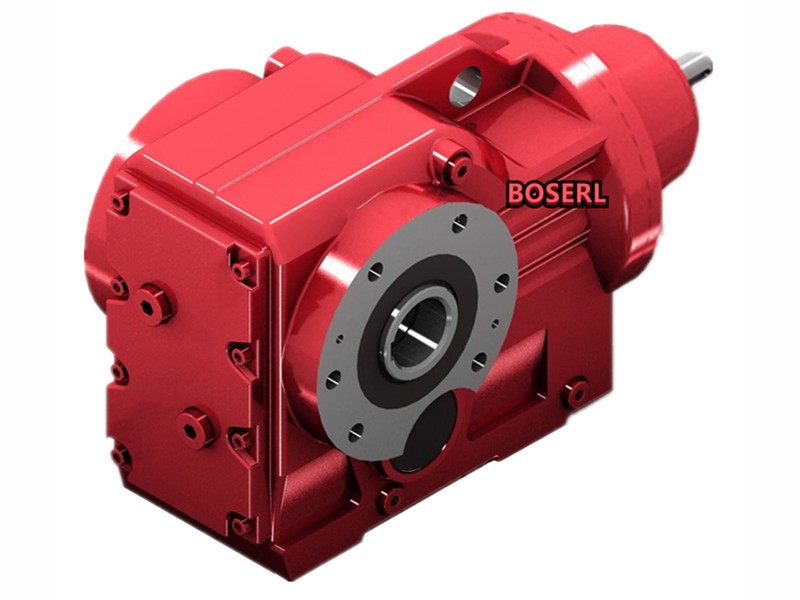

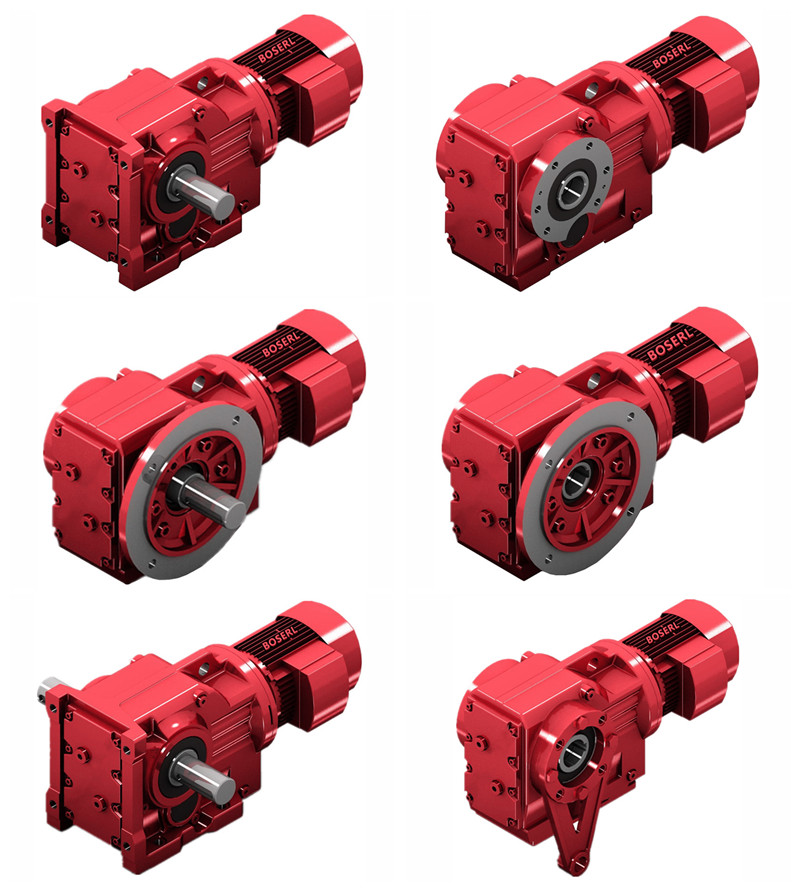

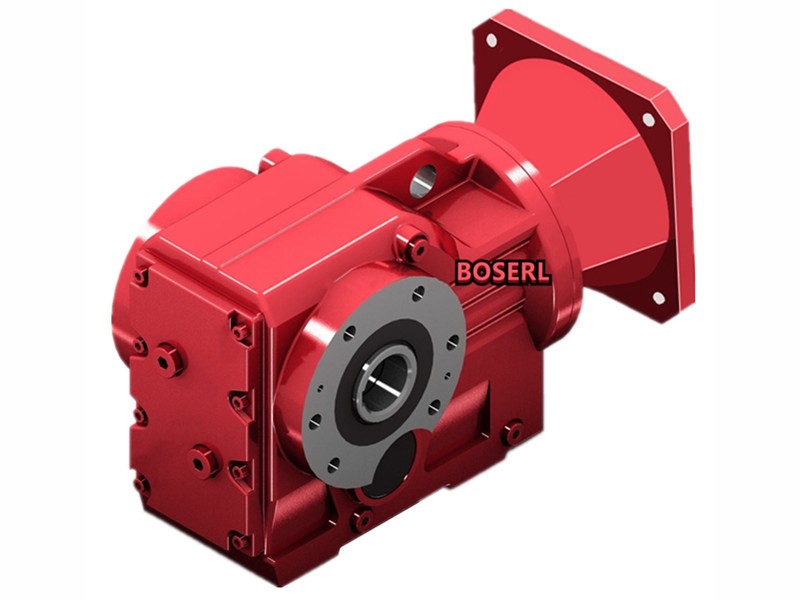

KH167減速機實物圖：圖一為KH167臥式底腳安裝方式鎖緊盤螺旋錐齒輪減速電機，圖二K167臥式安裝方式螺旋錐齒輪減速電機，圖三為KA167立式安裝方式實心軸輸出螺旋錐齒輪減速電機，圖四為KAF167立式安裝方式直角空心軸螺旋錐齒輪減速機。

KH167減速機型號表示方法：

KH167減速機型號結構KH167-B110KW-4P-減速比-安裝方式-接線盒位置。

KH167減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KH167、K167、KA167、KAF167，N代表徑向負荷，HR手動釋放裝置，1，min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KH167減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝方式，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。空心軸減速機

KH167減速機參數：

KH167減速機減速比1164.5比，134.99比，109.83比，87.86比，78.14比，68.07比，60.74比，51.77比，42.89比，36.61比，32.25比，28.77比，24.52比，20.32比，17.34比。

KH167減速機輸出轉數8.5轉，10轉，13轉，16轉，18轉，21轉，23轉，27轉，33轉，38轉，43轉，49轉，57轉，69轉，81轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KH167減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KH167與11KW，KH167與15KW，KH167與18.5KW，KH167與22KW，KH167與30KW，KH167與37KW，KH167與45KW，KH167與55KW，KH167與75KW，KH167與90KW，KH167與110KW，KH167與132KW，KH167與160KW，KH167與200KW。

KH167減速機輸出扭矩32000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

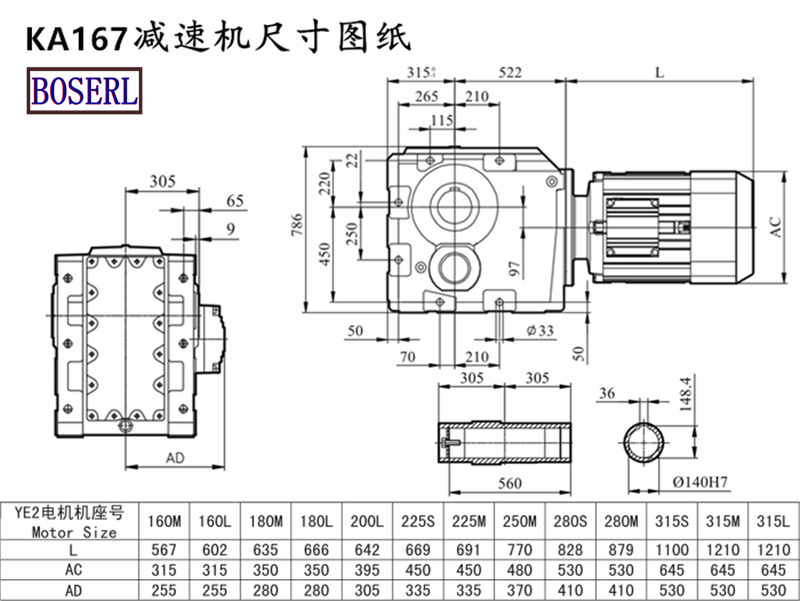

KH167減速機安裝尺寸：高786*寬580*長837

KH167減速機型號：KH167AQA80,KH167AQA100,KH167AQA115,KH167AQA140,KH167AQA160,KH167AQA190,KH167AQH80,KH167AQH100,KH167AQH115,KH167AQH140,KH167AQH160,KH167AQH190,JRTKH167-Y110KW,JRTKH167-Y11KW,JRTKH167-Y132KW,JRTKH167-Y15KW,JRTKH167-Y160KW,JRTKH167-Y160M4,JRTKH167-Y18.5KW,JRTKH167-Y180M4,JRTKH167-Y200KW,JRTKH167-Y200M4,JRTKH167-Y225M4,JRTKH167-Y22KW,JRTKH167-Y250M4,JRTKH167-Y280M4,JRTKH167-Y30KW,JRTKH167-Y315M4,JRTKH167-Y37KW,JRTKH167-Y45KW,JRTKH167-Y55KW,JRTKH167-Y75KW,JRTKH167-Y90KW,JRTKH167-YEJ160M4,JRTKH167-YEJ180M4,JRTKH167-YEJ200M4,JRTKH167-YEJ225M4,JRTKH167-YEJ250M4,JRTKH167-YEJ280M4,JRTKH167-YEJ315M4,JRTKH167-YS160M4,JRTKH167-YS180M4,JRTKH167-YS200M4,JRTKH167-YS225M4,JRTKH167-YS250M4,JRTKH167-YS280M4,JRTKH167-YS315M4,JRTKH167-YVP160M4,JRTKH167-YVP180M4,JRTKH167-YVP200M4,JRTKH167-YVP225M4,JRTKH167-YVP250M4,JRTKH167-YVP280M4,JRTKH167-YVP315M4,JRTKH167-YVPEJ160M4,JRTKH167-YVPEJ180M4,JRTKH167-YVPEJ200M4,JRTKH167-YVPEJ225M4,JRTKH167-YVPEJ250M4,JRTKH167-YVPEJ280M4,JRTKH167-YVPEJ315M4,EWKH167-Y110KW,EWKH167-Y11KW,EWKH167-Y132KW,EWKH167-Y15KW,EWKH167-Y160KW,EWKH167-Y160M4,EWKH167-Y18.5KW,EWKH167-Y180M4,EWKH167-Y200KW,EWKH167-Y200M4,EWKH167-Y225M4,EWKH167-Y22KW,EWKH167-Y250M4,EWKH167-Y280M4,EWKH167-Y30KW,EWKH167-Y315M4,EWKH167-Y37KW,EWKH167-Y45KW,EWKH167-Y55KW,EWKH167-Y75KW,EWKH167-Y90KW,EWKH167-YEJ160M4,EWKH167-YEJ180M4,EWKH167-YEJ200M4,EWKH167-YEJ225M4,EWKH167-YEJ250M4,EWKH167-YEJ280M4,EWKH167-YEJ315M4,EWKH167-YS160M4,EWKH167-YS180M4,EWKH167-YS200M4,EWKH167-YS225M4,EWKH167-YS250M4,EWKH167-YS280M4,EWKH167-YS315M4,EWKH167-YVP160M4,EWKH167-YVP180M4,EWKH167-YVP200M4,EWKH167-YVP225M4,EWKH167-YVP250M4,EWKH167-YVP280M4,EWKH167-YVP315M4,EWKH167-YVPEJ160M4,EWKH167-YVPEJ180M4,EWKH167-YVPEJ200M4,EWKH167-YVPEJ225M4,EWKH167-YVPEJ250M4,EWKH167-YVPEJ280M4,EWKH167-YVPEJ315M4,SLKH167-Y110KW,SLKH167-Y11KW,SLKH167-Y132KW,SLKH167-Y15KW,SLKH167-Y160KW,SLKH167-Y160M4,SLKH167-Y18.5KW,SLKH167-Y180M4,SLKH167-Y200KW,SLKH167-Y200M4,SLKH167-Y225M4,SLKH167-Y22KW,SLKH167-Y250M4,SLKH167-Y280M4,SLKH167-Y30KW,SLKH167-Y315M4,SLKH167-Y37KW,SLKH167-Y45KW,SLKH167-Y55KW,SLKH167-Y75KW,SLKH167-Y90KW,SLKH167-YEJ160M4,SLKH167-YEJ180M4,SLKH167-YEJ200M4,SLKH167-YEJ225M4,SLKH167-YEJ250M4,SLKH167-YEJ280M4,SLKH167-YEJ315M4,SLKH167-YS160M4,SLKH167-YS180M4,SLKH167-YS200M4,SLKH167-YS225M4,SLKH167-YS250M4,SLKH167-YS280M4,SLKH167-YS315M4,SLKH167-YVP160M4,SLKH167-YVP180M4,SLKH167-YVP200M4,SLKH167-YVP225M4,SLKH167-YVP250M4,SLKH167-YVP280M4,SLKH167-YVP315M4,SLKH167-YVPEJ160M4,SLKH167-YVPEJ180M4,SLKH167-YVPEJ200M4,SLKH167-YVPEJ225M4,SLKH167-YVPEJ250M4,SLKH167-YVPEJ280M4,SLKH167-YVPEJ315M4,DSZKH167-Y110KW,DSZKH167-Y11KW,DSZKH167-Y132KW,DSZKH167-Y15KW,DSZKH167-Y160KW,DSZKH167-Y160M4,DSZKH167-Y18.5KW,DSZKH167-Y180M4,DSZKH167-Y200KW,DSZKH167-Y200M4,DSZKH167-Y225M4,DSZKH167-Y22KW,DSZKH167-Y250M4,DSZKH167-Y280M4,DSZKH167-Y30KW,DSZKH167-Y315M4,DSZKH167-Y37KW,DSZKH167-Y45KW,DSZKH167-Y55KW,DSZKH167-Y75KW,DSZKH167-Y90KW,DSZKH167-YEJ160M4,DSZKH167-YEJ180M4,DSZKH167-YEJ200M4,DSZKH167-YEJ225M4,DSZKH167-YEJ250M4,DSZKH167-YEJ280M4,DSZKH167-YEJ315M4,DSZKH167-YS160M4,DSZKH167-YS180M4,DSZKH167-YS200M4,DSZKH167-YS225M4,DSZKH167-YS250M4,DSZKH167-YS280M4,DSZKH167-YS315M4,DSZKH167-YVP160M4,DSZKH167-YVP180M4,DSZKH167-YVP200M4,DSZKH167-YVP225M4,DSZKH167-YVP250M4,DSZKH167-YVP280M4,DSZKH167-YVP315M4,DSZKH167-YVPEJ160M4,DSZKH167-YVPEJ180M4,DSZKH167-YVPEJ200M4,DSZKH167-YVPEJ225M4,DSZKH167-YVPEJ250M4,DSZKH167-YVPEJ280M4,DSZKH167-YVPEJ315M4,BKH167-Y110KW,BKH167-Y11KW,BKH167-Y132KW,BKH167-Y15KW,BKH167-Y160KW,BKH167-Y160M4,BKH167-Y18.5KW,BKH167-Y180M4,BKH167-Y200KW,BKH167-Y200M4,BKH167-Y225M4,BKH167-Y22KW,BKH167-Y250M4,BKH167-Y280M4,BKH167-Y30KW,BKH167-Y315M4,BKH167-Y37KW,BKH167-Y45KW,BKH167-Y55KW,BKH167-Y75KW,BKH167-Y90KW,BKH167-YEJ160M4,BKH167-YEJ180M4,BKH167-YEJ200M4,BKH167-YEJ225M4,BKH167-YEJ250M4,BKH167-YEJ280M4,BKH167-YEJ315M4,BKH167-YS160M4,BKH167-YS180M4,BKH167-YS200M4,BKH167-YS225M4,BKH167-YS250M4,BKH167-YS280M4,BKH167-YS315M4,BKH167-YVP160M4,BKH167-YVP180M4,BKH167-YVP200M4,BKH167-YVP225M4,BKH167-YVP250M4,BKH167-YVP280M4,BKH167-YVP315M4,BKH167-YVPEJ160M4,BKH167-YVPEJ180M4,BKH167-YVPEJ200M4,BKH167-YVPEJ225M4,BKH167-YVPEJ250M4,BKH167-YVPEJ280M4,BKH167-YVPEJ315M4,GKH167-Y110KW,GKH167-Y11KW,GKH167-Y132KW,GKH167-Y15KW,GKH167-Y160KW,GKH167-Y160M4,GKH167-Y18.5KW,GKH167-Y180M4,GKH167-Y200KW,GKH167-Y200M4,GKH167-Y225M4,GKH167-Y22KW,GKH167-Y250M4,GKH167-Y280M4,GKH167-Y30KW,GKH167-Y315M4,GKH167-Y37KW,GKH167-Y45KW,GKH167-Y55KW,GKH167-Y75KW,GKH167-Y90KW,GKH167-YEJ160M4,GKH167-YEJ180M4,GKH167-YEJ200M4,GKH167-YEJ225M4,GKH167-YEJ250M4,GKH167-YEJ280M4,GKH167-YEJ315M4,GKH167-YS160M4,GKH167-YS180M4,GKH167-YS200M4,GKH167-YS225M4,GKH167-YS250M4,GKH167-YS280M4,GKH167-YS315M4,GKH167-YVP160M4,GKH167-YVP180M4,GKH167-YVP200M4,GKH167-YVP225M4,GKH167-YVP250M4,GKH167-YVP280M4,GKH167-YVP315M4,GKH167-YVPEJ160M4,GKH167-YVPEJ180M4,GKH167-YVPEJ200M4,GKH167-YVPEJ225M4,GKH167-YVPEJ250M4,GKH167-YVPEJ280M4,GKH167-YVPEJ315M4,KCH167-Y110KW,KCH167-Y11KW,KCH167-Y132KW,KCH167-Y15KW,KCH167-Y160KW,KCH167-Y160M4,KCH167-Y18.5KW,KCH167-Y180M4,KCH167-Y200KW,KCH167-Y200M4,KCH167-Y225M4,KCH167-Y22KW,KCH167-Y250M4,KCH167-Y280M4,KCH167-Y30KW,KCH167-Y315M4,KCH167-Y37KW,KCH167-Y45KW,KCH167-Y55KW,KCH167-Y75KW,KCH167-Y90KW,KCH167-YEJ160M4,KCH167-YEJ180M4,KCH167-YEJ200M4,KCH167-YEJ225M4,KCH167-YEJ250M4,KCH167-YEJ280M4,KCH167-YEJ315M4,KCH167-YS160M4,KCH167-YS180M4,KCH167-YS200M4,KCH167-YS225M4,KCH167-YS250M4,KCH167-YS280M4,KCH167-YS315M4,KCH167-YVP160M4,KCH167-YVP180M4,KCH167-YVP200M4,KCH167-YVP225M4,KCH167-YVP250M4,KCH167-YVP280M4,KCH167-YVP315M4,KCH167-YVPEJ160M4,KCH167-YVPEJ180M4,KCH167-YVPEJ200M4,KCH167-YVPEJ225M4,KCH167-YVPEJ250M4,KCH167-YVPEJ280M4,KCH167-YVPEJ315M4,MTJH167-Y110KW,MTJH167-Y11KW,MTJH167-Y132KW,MTJH167-Y15KW,MTJH167-Y160KW,MTJH167-Y160M4,MTJH167-Y18.5KW,MTJH167-Y180M4,MTJH167-Y200KW,MTJH167-Y200M4,MTJH167-Y225M4,MTJH167-Y22KW,MTJH167-Y250M4,MTJH167-Y280M4,MTJH167-Y30KW,MTJH167-Y315M4,MTJH167-Y37KW,MTJH167-Y45KW,MTJH167-Y55KW,MTJH167-Y75KW,MTJH167-Y90KW,MTJH167-YEJ160M4,MTJH167-YEJ180M4,MTJH167-YEJ200M4,MTJH167-YEJ225M4,MTJH167-YEJ250M4,MTJH167-YEJ280M4,MTJH167-YEJ315M4,MTJH167-YS160M4,MTJH167-YS180M4,MTJH167-YS200M4,MTJH167-YS225M4,MTJH167-YS250M4,MTJH167-YS280M4,MTJH167-YS315M4,MTJH167-YVP160M4,MTJH167-YVP180M4,MTJH167-YVP200M4,MTJH167-YVP225M4,MTJH167-YVP250M4,MTJH167-YVP280M4,MTJH167-YVP315M4,MTJH167-YVPEJ160M4,MTJH167-YVPEJ180M4,MTJH167-YVPEJ200M4,MTJH167-YVPEJ225M4,MTJH167-YVPEJ250M4,MTJH167-YVPEJ280M4,MTJH167-YVPEJ315M4,WXKH167-WSS110KW,WXKH167-WSS11KW,WXKH167-WSS132KW,WXKH167-WSS15KW,WXKH167-WSS160KW,WXKH167-WSS160M4,WXKH167-WSS18.5KW,WXKH167-WSS180M4,WXKH167-WSS200KW,WXKH167-WSS200M4,WXKH167-WSS225M4,WXKH167-WSS22KW,WXKH167-WSS250M4,WXKH167-WSS280M4,WXKH167-WSS30KW,WXKH167-WSS315M4,WXKH167-WSS37KW,WXKH167-WSS45KW,WXKH167-WSS55KW,WXKH167-WSS75KW,WXKH167-WSS90KW,WXKH167-WSSB160M4,WXKH167-WSSB180M4,WXKH167-WSSB200M4,WXKH167-WSSB225M4,WXKH167-WSSB250M4,WXKH167-WSSB280M4,WXKH167-WSSB315M4,WXKH167-WSSVP160M4,WXKH167-WSSVP180M4,WXKH167-WSSVP200M4,WXKH167-WSSVP225M4,WXKH167-WSSVP250M4,WXKH167-WSSVP280M4,WXKH167-WSSVP315M4,WXKH167-WSSVPB160M4,WXKH167-WSSVPB180M4,WXKH167-WSSVPB200M4,WXKH167-WSSVPB225M4,WXKH167-WSSVPB250M4,WXKH167-WSSVPB280M4,WXKH167-WSSVPB315M4。

KH167減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.bartecshanxi.com.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K167減速機
